| QRP01, Gainclone | Professional pcb
Only the bare pcb, no additional parts are included except for 1.5 mm wire for the inductor. Weight 74+20 g. |
400 SEK
Including two ready made inductors 480 SEK |
 |
| QRP02, Gainclone | Professional pcb
Only the bare pcb, no additional parts are included except for 1.5 mm wire for the inductor. Weight 40+10 g. |
200 SEK
Including a ready made inductor 240 SEK |
 |
| QSXPS Rev.1, power supply | Professional pcb
Only the bare pcb, no additional parts are included. Weight 77 g. |
240 SEK |  |
| QSXPS Rev. 0, power supply | Professional pcb
Only the bare pcb, no additional parts are included. Weight 58 g. |
-- SEK
No pcb's available, discontinued. See rev. 1 instead |
 |
| JSR01, power supply |
Only the bare pcb, no additional parts are included. Weight 14 g. |
100 SEK 4 pcs. 320 SEK |
 |
| JSR02, power supply |
Only the bare pcb, no additional parts are included. Weight 5 g. |
No pcb's available, discontinued. |
 |
| JSR03, power supply |
Only the bare pcb, no additional parts are included. Weight 8 g. |
4 pcs. 320 SEK |
 |
| JSR03, power supply |
Pcb and AD825 no extra charge if you want it soldered. Weight 9 g. |
4 pcs. 600 SEK |
|
| JSR03, power supply |
Ready made unit with D44H11, AD825, precision reference LM329, voltage out 13.6-13.8 volt. Other voltages on request. Weight 20 g. |
2 pcs. of JSR05 and/or JSR03 1200 SEK |
|
| JSR04, power supply |
Only the bare pcb, no additional parts are included. Weight 94 g. |
|
 |
| JSR04, power supply |
Pcb and AD825 no extra charge if you want them soldered. Weight 95 g. |
|
|
| JSR04, dual power supply |
Ready made unit with BD139/140, AD825, precision reference LM431, voltage out +-14.8 volt. Other voltages on request. Weight 314 g. |
|
|
| JSR05, power supply, negative voltage |
Only the bare pcb, no additional parts are included. Weight 8 g. |
4 pcs. 320 SEK. |
 |
| JSR05, power supply, negative voltage |
Pcb and AD825 no extra charge if you want it soldered. Weight 9 g. |
4 pcs. 600 SEK |
|
| JSR05, power supply, negative voltage |
Ready made unit with D45H11, AD825, precision reference LM329, voltage out -13.6-13.8 volt. Other voltages on request. Weight 20 g. |
2 pcs. of JSR05 and/or JSR03 1200 SEK |
|
| JSR06, dual power supply |
Only the bare pcb, no additional parts are included. Weight 47 g. |
|
 |
| JSR06, dual power supply |
Pcb and AD825. No extra charge if you want them soldered. Weight 47 g. |
|
|
| JSR06, dual power supply |
Ready made unit with D44H11, D45H11, AD825, precision reference LM431, voltage out , 14,8 volt. Other voltages on request. Weight 426 g. |
|
|
| QSXM2, phono amp |
Only the bare pcb, no additional parts are included. Weight 128 g. |
|
 |
| QSXM3, phono amp |
Only the bare pcb, no additional parts are included. Weight 124 g. |
|
 |
| QRV01, headphone amp |
Only the bare pcb, no additional parts are included. Weight 168 g. |
|
 |
| QRV02, headphone amp |
Only the bare pcb, no additional parts are included. Weight 90 g. |
|
 |
| QRV03, headphone amp |
Only the bare pcb, no additional parts are included. Weight 76 g. |
|
 |
| QRV04, headphone amp |
Only the bare pcb, no additional parts are included. Weight 38 g. |
|
 |
| QRV05, diamond buffer |
Only a single channel, two for stereo are needed. Only the bare pcb, no additional parts are included. Weight 5 g. 4 pcs. 28 g |
4 pcs. 160 SEK |
 |
| QRV06, headphone amp |
Only the bare pcb, no additional parts are included. Weight 13 g. |
No pcb's available, discontinued. See the QRV-08 instead.
|
 |
| QRV07, headphone amp |
Only the bare pcb, no additional parts are included. Weight 38 g. |
|
 |
| QRV08, headphone amp |
Only the bare pcb, no additional parts are included. Weight 88 g. |
|
 |
| DCT01, DC trap |
Only the bare pcb, no additional parts are included. Weight 23 g. |
|
 |
| SST01, soft start |
Only the bare pcb, no additional parts are included. Weight 25 g. |
|
 |
| MLD-01, Mains LED Driver |
Only the bare pcb, no additional parts are included. Weight 10 g. |
No pcb's available. | |
| RFB01, rectifier bridge |
Only the bare pcb, no additional parts are included. Weight 22 g. |
No pcb's available, discontinued.
|
 |
| RFB02, rectifier bridge |
Only the bare pcb, no additional parts are included. Weight 19 g. 4 pcs. 86 g |
4 pcs. 320 SEK |
 |
| BC550C datasheet |
Transistor, NPN, 50V, 100mA, 300 mW, low noise, TO-92, only 100 package
|
50 SEK (ELFA-price 57 SEK)
OUT OF STOCK. |
 |
| BC560C datasheet | Transistor, PNP, 50V, 100mA, 300 mW, low noise, TO-92, only 100 package | 80 SEK
OUT OF STOCK. |
 |

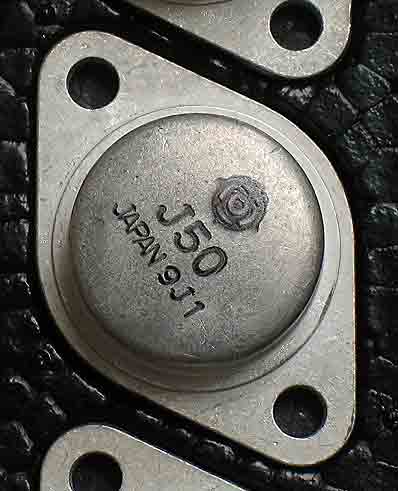

| 2SJ50 datasheet | P-channel MOSFET, 160 V, 7 A, TO-3, Hitachi, obsolete part. Weight 17,8 g. I have only one box. When they are gone they are gone...5 pcs. left... | 100 SEK, hand matched 150 SEK |  |

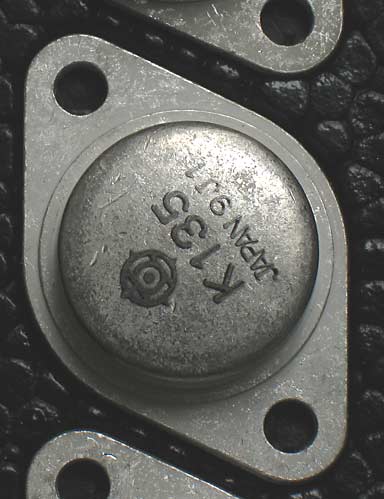

| 2SK135 datasheet | N-channel MOSFET, 160 V, 7 A, TO-3, Hitachi, obsolete part. Weight 17,8 g. I have only one box. When they are gone they are gone... 4 pcs. left... | 100 SEK, hand matched 150 SEK |  |
| 2SK135 and 2SJ50 are for sale only in pairs. At the moment I have one extra 2SJ50. | |||
| SSM2210 datasheet | NPN, 45 V, 100mA, Super matched ultra low noise transistor pair. Exactly the same as MAT02 except for package, this is DIL08. Weight 0,51 g. Got plenty. | 100 SEK (ELFA-price 196,25 SEK) | |
| SSM2220 datasheet | PNP, 45 V, 100mA, Super matched ultra low noise transistor pair. Exactly the same as MAT03 except for package, this is DIL08. Weight 0,51 g. Got plenty. | 100 SEK (ELFA-price 240,00 SEK) | |
| D44H11 datasheet | NPN, 80 V, 10A, 50 MHz, 50 W, TO220. Suitable for the Super Regulator. Weight 2,9 g | 25 SEK | |
| D45H11 datasheet | PNP, 80 V, 10A, 40 MHz, 50 W, TO220. Suitable for the Super Regulator. Weight 2,9 g | 25 SEK | |
| AD825AR datasheet | High speed JFET opamp, suitable for the Super Regulator. Analog Devices Weight 0,51 g. | 100 SEK | |
| LT1028CN8 datasheet | Super ultra low noise opamp 0,9 nV/ square root Hz. Linear Tech Weight 0,51 g. Got 30 pcs. | 70 SEK (ELFA-price 223 SEK) | |
| LT1115CN8 datasheet | Super ultra low noise opamp 0,9 nV/ square root Hz. Weight 0,51 g. Got 2 pcs. | 120 SEK | |
| ICL7650CPD datasheet | Chopper stabilized opamp, DIL08. Intersil Weight 0,51 g. Got 2 pcs. | 10 SEK | |
| LM143H datasheet | High voltage opamp. Metal can. Obsolete. | 500 SEK | |
| RC4136 | Quad low noise opamp, DIL14. surplus Weight 0,51 g. Got 2 pcs. | 1 SEK | |
| CD4511BCN | BCD to 7 segment driver, National, surplus Got 1 pcs. | 0 SEK | |
| MC14511BCP | BCD to 7 segment driver, Motorola, surplus Got 5 pcs. | 0 SEK | |
| HEF4511BP | BCD to 7 segment driver, Philips, surplus Got 24 pcs. | 0 SEK | |
| PC715 | Opto coupler Sharp Got 30 pcs. | 1 SEK | |
| ICL7107CDL datasheet | 3,5 digit digital voltmeter DIL40, cerdip with gold plated pins, Intersil, Got 1 pcs. | 100 SEK | |
| ICL8048CCPE datasheet | Logarithmic amplifier, Intersil, DIL16. Got 1 pcs. | 500 SEK | |
| LT1088CD datasheet | True RMS converter, DIL16, Linear Technology. Got 1 pcs. | 500 SEK | |
| Photo diode, unknown type | Photo diode with a large chip (3x3 mm) and probably very light sensitive. Unknown type, data and brand. Unmarked. Got 2 pcs. | 200 SEK |  |
All prices are in Swedish currency (SEK ). For currency rates see below.
Postage & packing:
The table below is for items which can be sent as letters, not things which must go as packages. My products are sent with following charges:
| Weight [g] | Sweden [SEK] | Europe [SEK] | The rest of the world [SEK] |
| 20 | 5.50 | 11.00 | 11.00 |
| 100 | 11.00 | 20.00 | 25.00 |
| 250 | 22.00 | 40.00 | 50.00 |
| 500 | 33.00 | 70.00 | 80.00 |
| 1000 | 44.00 | 130.00 | 150.00 |
| 2000 | 66.00 | 205.00 | 240.00 |
Airmail reach most countries within a week or ten days.
If you are ordering heavy items - contact us for current postage rates.
For registered mail add 65 SEK.
Payment:
You have several alternatives, choose the one you like best:
SWEDISH CUSTOMERS / SVENSKA KUNDER:
Postgiro konto 421 22 42-4, P-A Sjöström Elektronikkonsult
Svenska kunder betalar enklast per postgiro. Pengar i brev går också bra men bara småbelopp och sedlar.
OTHER COUNTRIES:
Cash in USD and EUR, but only bills/notes (paper money). Send the money in an envelope to my address. If you want, send as registered mail.
Please send to the following address:
Per-Anders Sjöström
Nya Varvsallén 22 C
SE-426 71 Västra Frölunda
Sweden.
Postal giro account no. 421 22 42-4, P-A Sjöström Elektronikkonsult (add SEK 40 for giro charges).
Direct to my bank account number (SWIFT):
Nordea Bank Sverige AB
S-105 71 STOCKHOLM
Sweden
BIC (SWIFT-address) NDEASESS Bank Identifier Code
IBAN SE1430000000005902261675 International Bank Account Number.
Bank account number 590226-1675 (clearing number 3782).
NB! Please add following bank charges when paying to our bank account:
- European Union: 60 SEK
- Other countries: 60 SEK
Paypal (don't pay anything, let me bill you first). Good experience of Paypal, it's fast (seconds to minutes), works good. Add 5% for the Paypal fee.
